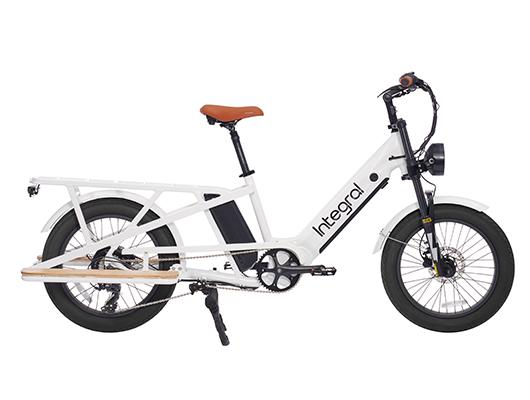

Maven Cargo E-bike
Maven Cargo E-bike
Pair it with
Couldn't load pickup availability
- In Stock- Ships within 2-3 business days
The Maven is built for sharing, so that both short and tall riders can carry cargo with confidence. The Maven has a seatdropper and double telescoping seatpost so that it can serve riders 5'0" to 6'7"
The Maven is loaded with safety features like an ultra bring headlight, front and rear turn signals, hydraulic disc brakes, and an extra long chain guard to protect precious cargo.
Compatible Child Seats:
2nd Battery
Included
Range of 75+ miles- the peace of mind to go wherever you want with your precious cargo. (A $500 Value)
Fits riders 5’0” to 6’7”
Our extra long seat post with a dropper makes sharing between different partners a breeze. Adjustable handlebars make the fit even more precise for your body.
Top of the Line Safety Features
With hydraulic Disc brakes, turn signals, and brake lights, you’ll feel at ease carrying your precious cargo.
The Untold Secret of Cargo Ebikes: They’re NOT designed for the needs of women and shorter riders.
We’ve talked to a lot of women about their experience on cargo bikes, and 9 out of 10 report feeling unstable, like they're "not quite strong enough." But they're not really the problem; it's actually just bad cargo bike design! The female center of gravity is at waist height, and so women need cargo to be well below the waist in order to feel stable.
Our "Low Center of Gravity" Rear Rack
The rear rack sits just above the back wheel. It's where your precious cargo will be situated, and the lower that is, the more control and stability you'll feel. We've optimized our tire size, battery location, and frame design to get the rear rack less than 24 inches off the ground—just above the knee of the average female, and far below their center of gravity. Confident, easeful riding for all!
Maven Reviews in the Press
Outside Magazine Review
The Integral Electrics Maven Cargo E-Bike Ticks All The Boxes
"You’d be surprised by the number of cargo bikes at this price point that become noodles when you start loading them up. The Maven always felt sturdy and turned into corners without hesitation, even with a fully grown adult on the back and a load of groceries up front."
Ars Technica Review
A Cycling Newb Tries a Cargo E-bike: The User Friendly Maven
"Going up hills and accelerating was effortless when the 750-watt motor kicked in. The adjustable front suspension was generously cushiony as we took the bike over gravel, dirt, asphalt, and sidewalks in various states of repair...the stylish, thoughtfully designed, and competitively priced Maven is definitely one to consider."
20 Inch Wheels + Fat Tires
If you ask our founder Laura, she'll get on her soapbox about one thing—in her opinion, no cargo e-bike that's marketed to women and folks under 5'9" should have wheels bigger than 20 inches. Period. As the wheels get bigger, the center of gravity gets higher, making it hard for shorter riders to carry all their cargo comfortably.
At 3 inches wide, our fat tires are like an insurance policy against wiggly cargo and less than perfect roads.
Two Batteries Standard, 75+ miles of Range
For busy households, a backup battery means you don’t have to scramble for alternate transportation just because you forgot to plug in the charger. For families with kids, knowing you have plenty of range for all your adventures provides total peace of mind.
Haul It All: Customize to Your Lifestyle
We’ve configured Maven to be compatible with up to 2 Thule Yepp Maxi Child Seats or a variety of accessories like seat pads, safety railing, and much more.
Ultra-Bright Headlight, Turn Signals, Brake Lights, Oh My!
Safety is a top priority when carrying precious cargo, so we’ve made sure everyone can see you coming. Turn signals allow riders to hand signal for less time, allowing both hands on the handlebar to keep the bike feeling steady.
Easy to Service with Quality Components
We only use high quality, well known components from brands like Shimano, Bafang, etc... This means local service providers, like mobile bike technicians, can easily perform service on your Integral Electrics bike right outside your front door.
Full Specification
E-Drive (Battery and Motor) Specifications
-
750W 75Nm Bafang rear hub drive motor
-
48V 17.5Ah primary in-frame integrated battery (LG cells)
-
48V 14Ah secondary battery (LG cells)
-
LCD display with independent control
-
12 magnet cadence sensor
-
Ergonomic left hand throttle
-
Integrated turn signals
-
High power 400Lum front light (CREE LED)
-
High viewing angle rear light with turn signals (220 deg) (CREE LED)
-
150W charger
Frame
-
Custom AL6061T6 frame certified per ISO standard
-
Lifetime warranty on the frame
-
440 lb payload
-
High quality steel mudguard
-
Sturdy and easy to use kickstand
-
Removable running boards with wooden base
-
Optional accessories: front basket, rear seat pads and caboose
-
Total bike weight: 85 lbs
Bike Components
-
Tektro Auriga hydraulic brake system for cargo ebikes (HD-T740)
-
4 finger lever with power-off function on both levers
-
Tektro 180mm disc
-
Reinforced Kenda 20" x 3.0" tires
-
Full metal quick adjustable stem
-
Lock on grips color matched with seat
-
Seat post with dropper function
Transmission Specifications
-
Shimano Altus 7-speed derailleur and shifters
-
Shimano 14T - 34T cassette
-
Prowheel 46T crank
-
High quality KMC chain
-
Total Length: 77"
-
Wheelbase: 54.5"
-
Step Through Height: 18"
-
Rear Rack Height: 24"
-
Rear Rack Width: 3" (childseat compatible)
-
Minimum Seatpost Height: 27" (from ground to top of saddle)
-
Minimum Rider Inseam: 24"
FAQs
The Maven is compatible with this Universal Child Bike Seat as well as the Thule Yepp Maxi. Please purchase from the vendors linked above. Do not purchase any Thule Yepp Maxi 2 or Burley brand seats. These variants are not compatible with the Maven currently, but future generations of the bike will be.
We use UL certified cells in all of our batteries. Our batteries are also certified for ISO 4210 and UN 38.3. In 2024 we are pursuing an even higher level of battery certification, UL 2271. All our products are 3rd party tested to ensure the highest levels of safety for the batteries, as well as all other electrical and bicycle components.
The Maven can carry a total load of 440 lbs. (200 kgs). This total load includes both the weight of the rider and the weight of the passengers/cargo situated on the rear rack. This means the bike can carry an adult rider as well as an adult passenger, or two children.
The length of the rear rack is large enough to accomodate two Thule Yepp Maxi Child Seats (or similar sized options from other brands).
Battery range is mathematically estimated at 10Wh per km. With a capacity of 1512 Wh in total between the Maven's two batteries, the estimated range is 151 miles. Some dual battery brands will claim 150 miles of range, however they prove this out using test track conditions where you select a level of assist, then drive the bike around the flat track until it runs out of power.
So while 150 miles is theoretically possible, we advertise the Maven's dual battery range as half that: approximately 75 miles. We prefer to offer conservative range estimates because real world riding conditions can make a huge impact on range.
Key drivers of battery range are:
-
the number of stops and starts
-
the steepness of the terrain,
-
the total load on the bike (rider weight + passenger/cargo weight)
-
the amount of assistance being used
These factors can vary widely from household to household, and even day to day. The best way to know your range is to fully charge your battery, note the mileage on your odometer, and track how many miles you can go on your usual routes before the first battery is depleted. (The Maven comes standard with two batteries, so there's no need to worry while conducting this range test)
30-Day Returns
While most e-bike brands stop at 14 days, we'll give you a full 30-day, 50-mile window to ensure you love your bike.
Buy With Installments
E-bikes are a big investment, so we offer up to 24 months at 0% APR with Affirm. Terms vary based on credit.
1 Year Warranty
All of our products come with a one year warranty and customer satisfaction guarantee to ensure you're happy with your purchase.
